Add a Geocode Service

A Geocode Service allows you to locate addresses on the map within Cityworks (.../GeocodeServer).

1. Click the Service Resources tab.

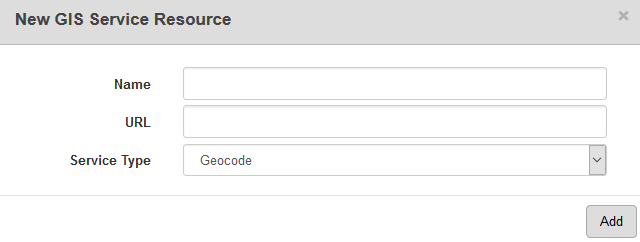

2. Click Add on the GIS Service Resources panel.

3. Enter a Name for the service.
4. Enter the URL of the service.
5. Select Geocode from the Service Type drop-down list and click Add.

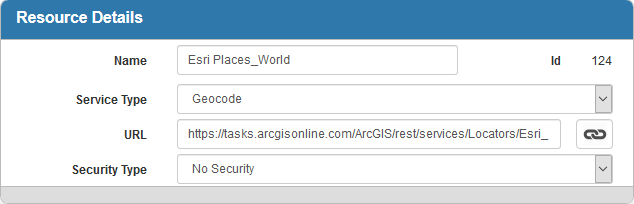

6. Select the new resource from the GIS Service Resources panel to finish entering the Resource Details.

The Id, a unique number assigned to the service resource, appears to the right of the resource Name.

7. Select the Security Type, either No Security, OAuth2 App, OAuth2 User, or Token.

See Configure Service Resource Security for more information on security types.

8. Click open service link next to the URL field to quickly check the service connection.

Once a Geocode Service is added as a resource, add it to a Service Definition. See Add Services to a Service Definition for more information.

NOTE: DesignerAdmin automatically saves the changes you make. A notification that says Data Saved appears in the top-right corner when you make changes to the page. You will see a progress bar in the top-right corner that says saving.
