Add a Mobile Map Package

The Mobile Map Package option allows administrators to define a base map for offline use in version 7 of the mobile native apps (Android and iOS). Mobile map packages are read-only and can be comprised of multiple maps, locators, and/or routing networks. They require little memory space and can be easily shared, updated, and used with ArcGIS apps and applications developed with ArcGIS Runtime.

  1. Click the Service Resources tab.
  2. Click Add on the GIS Service Resources panel.

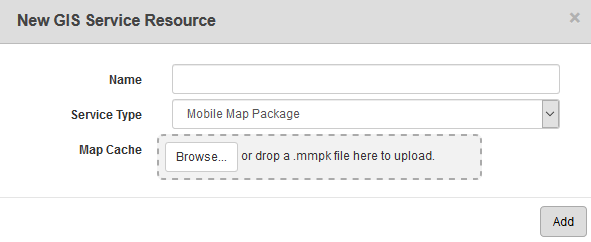

  1. Enter a Name for the service and select Mobile Map Package from the Service Type drop-down list.
  2. Add a .mmpk file by either clicking Browse and navigating to the file or by dragging and dropping the file in the gray area that says drop a .mmpk file here to upload.
  3. Click Add.

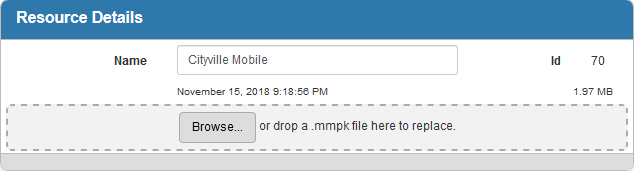

  4. Select the new resource from the GIS Service Resources panel to edit the Resource Details.

The Id, a unique number assigned to the service resource, appears to the right of the resource Name.

Once a Mobile Map Package is added as a resource, add it to a Service Definition. See Add Services to a Service Definition for more information.
