Reassign Asset Types

Starting in 15.6, the Reassign Asset Types page was retired. Now asset types can be reassigned in Asset Groups. This is a global change to the asset definition. When changing the asset type, the following tables are updated:

BEST PRACTICE: Check these tables after reassigning asset types to double-check that everything updated correctly.

AssetHistory.AssetType
AssetImage.EntityType
AssetReading.AssetClass
CA_Address.Asset_Type
CA_Address.Feature_Class
CA_Asset.Asset_Type
CA_Asset.Feature_Class
ChangeOutOperation.AssetType
ChangeOutOperation.DirectParentType
ConditionHistory.EntityType
CustEntity.EntityType
CustEntityAlias.EntityType
CustomLabel.TableName
CwAsset.AssetClass
CwAsset.FeatureClass
CwSvrSearchDefinition.ApplyToEntity
CwSvrSearchField.TableName
CwSvrSearchMapLayerField.MapLayer
CwSvrSearchResultField.TableName
EquipChangeOut.FeatureType
EquipmentCostAct.EntityType
EquipmentCostPrj.EntityType
Inspection.EntityType
Inspection.FeatureType
LaborCostAct.EntityType
LaborCostPrj.EntityType
LineItemCostAct.AssetType
LineItemCostPrj.AssetType
LineItemCostRpt.AssetType
MaterialCostAct.EntityType
MaterialCostPrj.EntityType
PAA_Case_Entity_Type.Entity_Type
PAttachment.EntityType
PavementInsp.SectionClassName
PermitAsset.AssetType
ProjectEntity.EntityType
ProjectEntity.FeatureType
RequestEntity.EntityType
RequestEntity.FeatureType
SDyeTest.Down_Type
SDyeTest.Pipe_Type
SDyeTest.Up_Type
SGenTest.Feature_Type
SManholeInsp.Feature_Type
SPipeInManhole.Pipe_Type
SSmokeTest.Down_Type
SSmokeTest.Pipe_Type
SSmokeTest.Up_Type
STVInspection.Down_Type
STVInspection.Pipe_Type
STVInspection.Up_Type
WIP_CA_Address.Asset_Type
WIP_CA_Address.Feature_Class
WorkOrder.ApplyToEntity
WorkOrderCostSummary.AssetType
WorkOrderEntity.EntityType
WorkOrderEntity.Feature_Type
WoTask.EntityType

PREREQUISITES:

Asset Groups must be configured under GIS > Asset Groups. See Configure Assets for more information.

From either the home page or GIS tab, click Asset Groups.

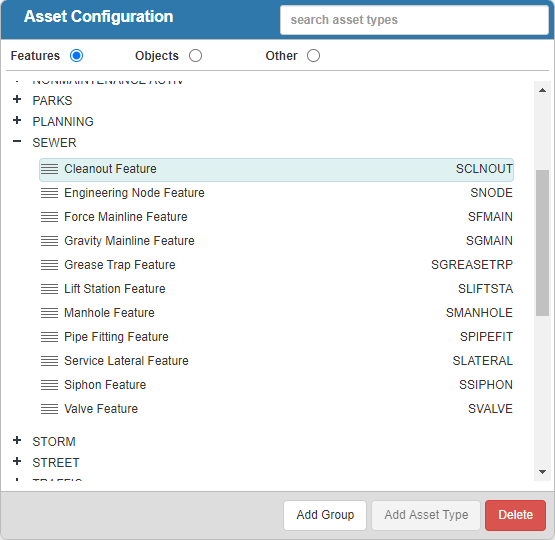

In the Asset Configuration panel, expand an asset group and select the desired asset type you'd like to reassign.

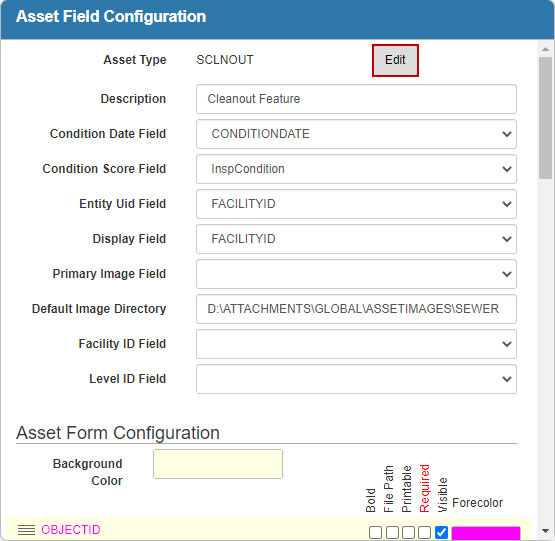

In the Asset Field Configuration panel click Edit next to the Asset Type field.

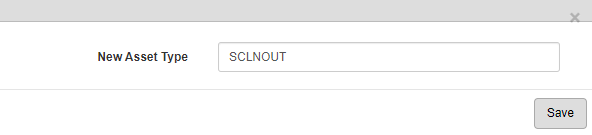

Enter the New Asset Type name and click Save.

NOTE: If the new asset type will be associated to an SOE, enter the value that matches the SOE configuration or it won't be able to find it in the SOE.

The work history is updated by default. The following tables are updated:

AssetAlias.AssetName
AssetHistory.AssetType
AssetImage.EntityType
AssetPrintField.AssetName
AssetTableField.TableName
ChangeOutOperation.AssetType
ChangeOutOperation.DirectParentType
ConditionHistory.EntityType
EquipmentCostAct.EntityType
EquipmentCostPrj.EntityType
GisServiceAsset.AssetType
Inspection.EntityType
Inspection.FeatureType
LaborCostAct.EntityType
LineItemCostAct.AssetType
LineItemCostPrj.AssetType
LineItemCostRpt.AssetType
MaterialCostAct.EntityType
MaterialCostPrj.EntityType
PAttachment.EntityType
RequestEntity.EntityType
RequestEntity.FeatureType
SDyeTest.Down_Type
SDyeTest.Pipe_Type
SDyeTest_Up_Type
SGenTest.Feature_Type
SSmokeTest.Down_Type
SSmokeTest.Up_Type
SManholeInsp.Feature_Type
SPipeInManhole.Pipe_Type
SSmokeTest.Pipe_Type
STVInspection.Down_Type
STVInspection.Pipe_Type
STVInspection.Up_Type
WorkOrder.ApplyToEntity
WorkOrderCostSummary.AssetType
WorkOrderEntity.EntityType
WorkOrderEntity.Feature_Type
WoTask.EntityType

NOTE: To expose the Update Work History check box, make a copy of the DesignerAssetGroup.xml file and change the field to be visible.

If you need to change the data source for the asset type, complete the following:

Once the asset type is changed, click Services from the GIS tab.
Click Service Layers and change the Service, Layer, and/or SOE Service for the asset type.
