Address Panel Fields

You are here:

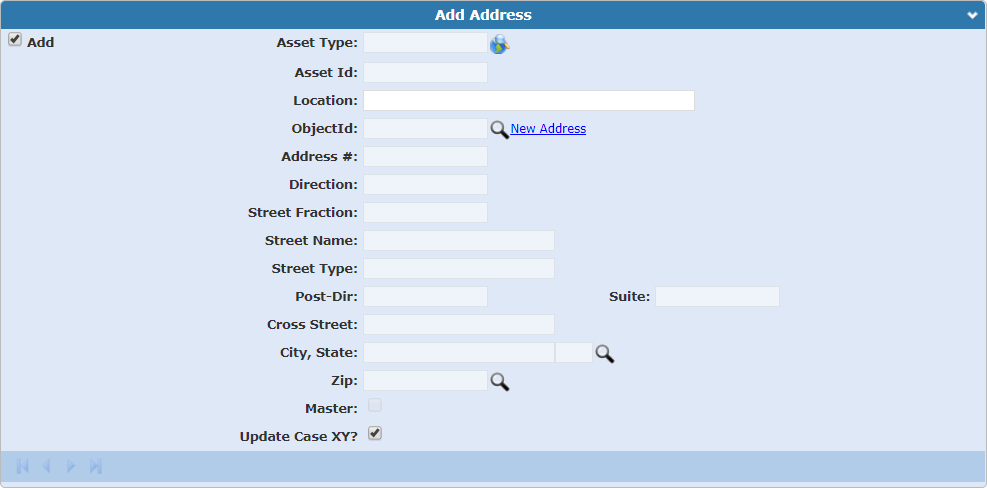

Address Panel Fields

The address is the geographical location of the permit or application.

Asset Type—The category of the permit or application, such as land, structure, and so on.
Asset Id—This is a numeric identifier assigned to this specific asset.
Location—Click the Select Assets from Map icon next to the Asset Type field to automatically geolocate the address of asset(s) selected on the map. This will automatically load location data from the asset(s) selected on the map.

NOTE: If the Location field on the Main panel is empty and a user adds a geolocated address in the Add Address panel, the Location field is populated on the Main panel when the case is saved.

Object ID(Parcel)—The numeric identifier assigned to a piece of land in the geodatabase. Click the Lookup icon to open the Address Query panel. This will allow you to find the Object ID associated with a specific address. For more information, see Add an Address.
New Address—This link provides access to Cityworks Land tables.
Address #—The number of the building, lot, residence, etc.
Direction—The directional prefix of the street (for example, N, NW, W, etc.).
Street Fraction—The numerical identifier of a street or alley, which is not separately addressed.
Street Name—This is the name of the street.
Street Type—This is the kind of street, such as a road, circle, avenue, boulevard, and so on.
Street Postdir—The directional suffix of the street (for example, S, SE, E, etc.).
Suite—The number of the unit (such as an office or apartment) within a larger building or complex.
Cross Street—The name of the nearest intersecting street.
City—Use the Lookup icon to select the city where the address is located.
State—Use the Lookup icon to select the state where the address is located.
Zip—Use the Lookup icon to select the zip code where the address is located.
Master—Select this check box to designate this address as the primary address for the site.

Last updated 4/13/2020.
