Add a Status Code to a Checklist Status Group

This section will discuss how to add checklist status codes to a checklist status group.

PREREQUISITES: The Correction Status Group security function and its associated sub-functions must be selected for the security role you belong to. See Security Roles for more information. You must have a correction status code set up. See Checklist Status Codes for more information.

To add a checklist status code to a checklist status group, follow these steps:

1. Click Checklist Setup on the PLL Admin menu panel and select Checklist Status Groups.

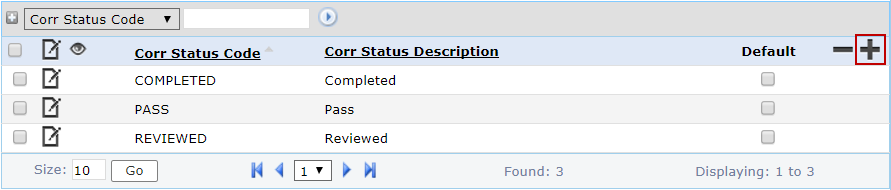

2. On the main Checklist Status Group panel, click the plus icon next to the status group you wish to inspect.

NOTE: Search or filter the records on this panel to quickly find the one(s) you want. See Search and Filter Records for more information.

3. On the status group sub panel, click Add record.

4. On the Add: Correction Status Group Detail panel, click Lookup next to the Corr Status Code field to select the appropriate correction status code.

5. Click Save.
