Map

The map displays all your applications geographically. Green application icons represent your submitted applications and gray icons represent incomplete applications. The initial extent for the map is determined by the proxy user entered in the installer. For more information, see the Public Access 7.0 Install Guide.

PREREQUISITES: The Show Map check box must be selected for the Submitted and Incomplete options. See Configure Tabs for more information.

1. Click the map icon to open or close the map.

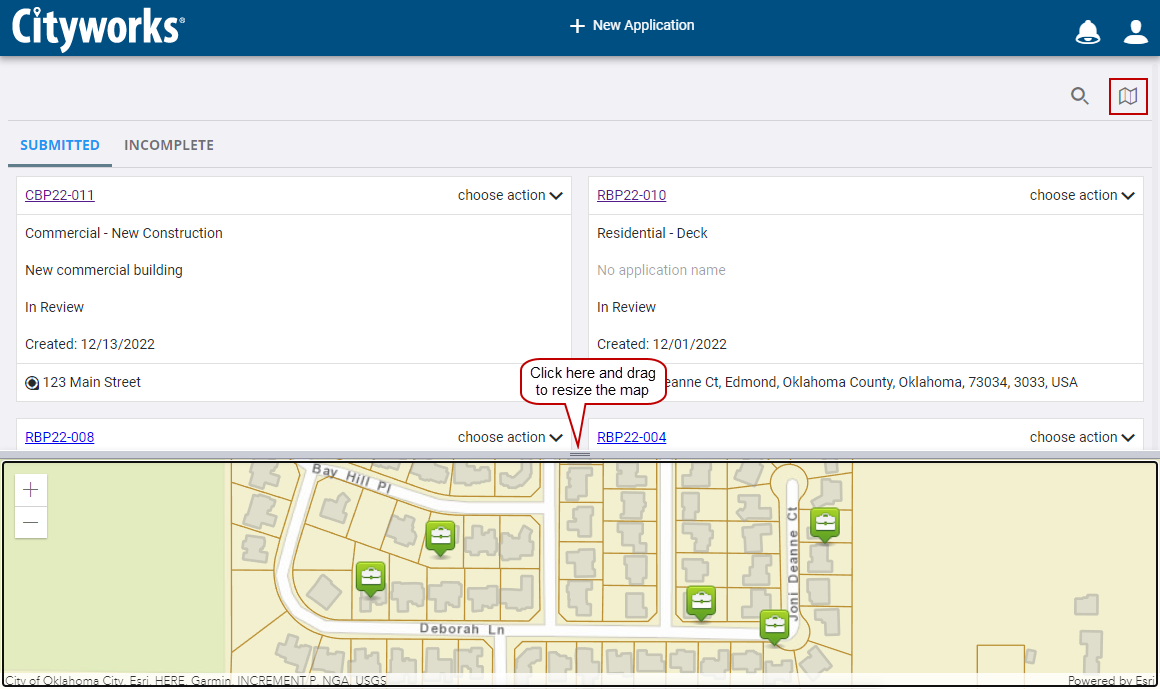

2. Click and drag the slider bar to resize the map.

The map has zoom controls in the upper-left corner.

3. Click the zoom in or zoom out icons to zoom in and out. If your mouse has a scroll wheel, you can also use it to zoom in and out.
4. To pan in any direction, click and drag the map in the direction you want to pan or use the directional keys on your keyboard.

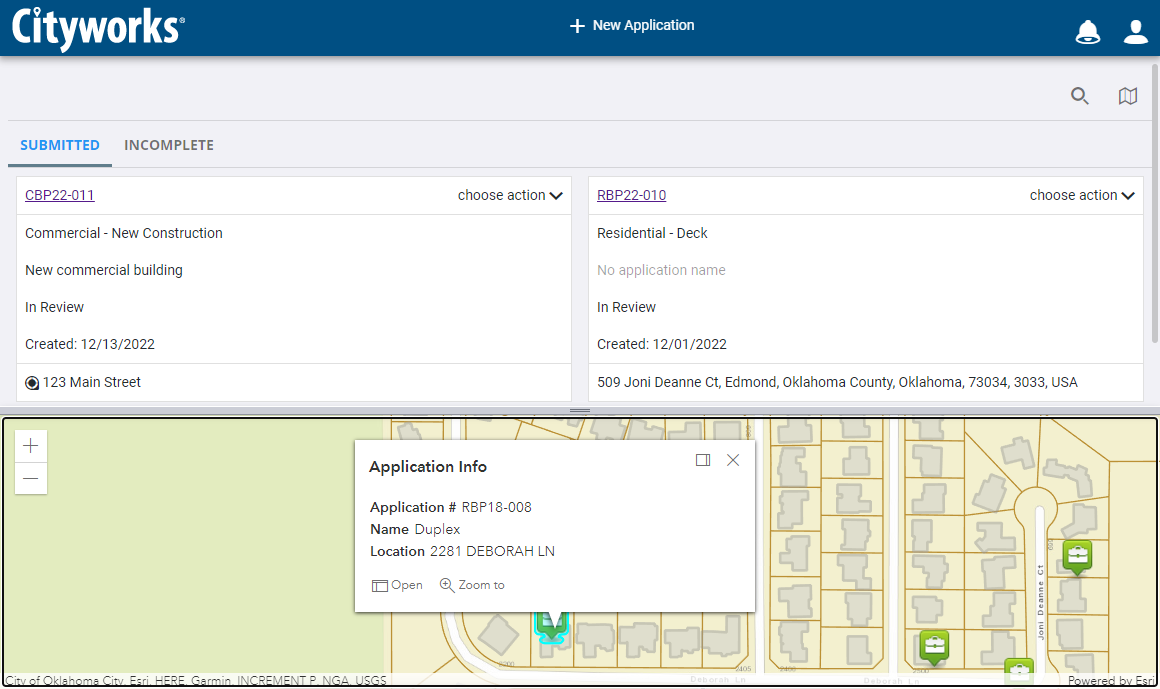

5. Click an application icon to see more information. Click Open to open the application or Zoom to to zoom to the application's location.
