Add a New Asset to the Map

New assets can be added to the map to show what really exists.

TIP: Make sure that the layer you're editing is visible in the Legend so you can view the assets on the map. See Make a Layer Visible for more information.

  1. Tap Editor on the map toolbar.
  2. Tap Start Editing.

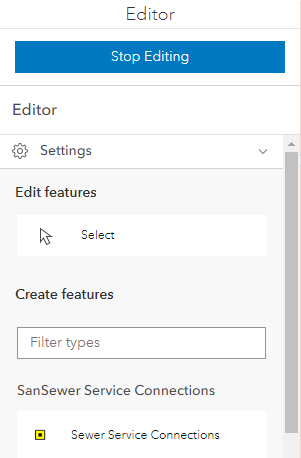

  3. Use the Filter types field to filter the list of features.
  4. Tap the feature you want to create.

  1. Tap the location on the map where the new asset should be. If adding a line, double-tap to complete the line.

  1. Enter relevant information in the attribute panel that appears. The fields in this panel are unique to the asset.
  2. Tap Create to add the asset to the map.

  1. Continue adding assets, tap the back arrow to choose a different feature type, or tap Stop Editing to stop the editing process.
