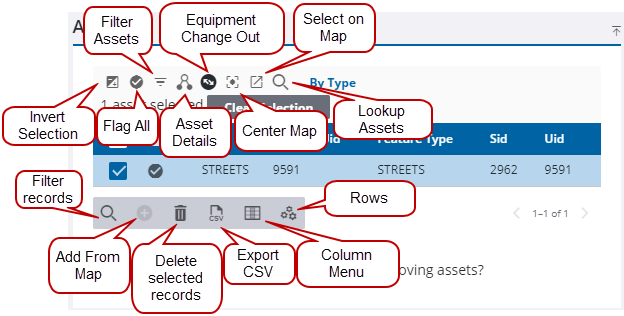

Assets Panel Fields

The Assets panel shows information concerning the attached asset(s). The number of total entities is listed in the panel.

• Invert Selection: Tap to switch between selected assets.

• Flag All: This allows you to mark work as complete for all assets in the panel or for each individual asset.

NOTE: This field only appears when you are viewing a work order.

• Filter Assets: Tap to filter assets by work complete or work incomplete.
• Asset Details: Tap to open the Asset Details page. See Asset Details for more information.
• Equipment Change Out: Tap to open the selected asset in Equipment Change Out. See Equipment Change Out for more information.
• Center Map: Tap to center the map on all the assets in the list or if an asset is selected, center the map on the selected asset.
• Select on Map: Tap to highlight selected assets on the map. If no assets are selected in the Assets panel, then all the assets in the list will be selected.
• Lookup Assets: Tap to search for assets by the asset type, UID, or the entity identifier.

• Filter records: Tap to quickly filter the list of fields in the panel.

• Add From Map: Tap to add assets selected on the map.
• Delete selected records: Tap to remove assets from the Assets panel.
• Export CSV: Tap to export the assets attached to the work order to an Excel spreadsheet.

• Column Menu: Tap to modify the columns shown on the panel.

• Rows: Tap to change the number of rows viewed at a time in the panel.

• Update Work Order XY when adding/removing assets?: Select to update the X and Y coordinates of the work order when assets are added or removed. If this is not selected, the X and Y coordinates do not change when assets are added or removed.
