Configure Bin Locations and Images for Materials

The Bin Location and Second Bin Location sections include the location of the bin and a corresponding image.

1. Tap Configure from the menu.
2. Tap Storeroom Material.

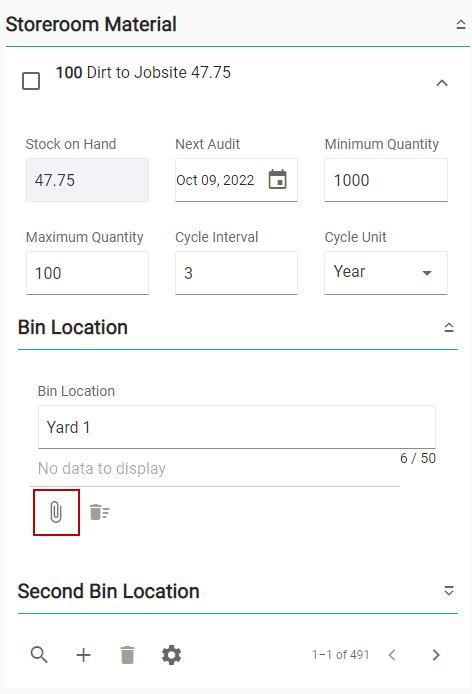

3. In the Storeroom panel, tap the arrow to the right of the storeroom you would like to configure bin locations and images for.
4. Tap the arrow to the right of the material to expand its details.
5. In the Bin Location or Second Bin Location sections, tap the arrow to the right of the bin to expand its details and enter the location.
6. Tap Add and navigate to an image for the bin.

7. To remove the image, tap Delete All or tap Details and tap Delete attachment.
8. To download the image, tap the thumbnail.
