Mark Up Attachments

Users can mark up or redline existing attachments or when adding new attachments to inspections in Trimble Unity Mobile. These changes are reflected in Cityworks.

  1. Select an inspection from the list.

The inspection details open.

  1. Click Attachments.

  1. Click Edit in the top-right corner.

  1. Click the add icon in the top-right corner.

  1. Click Map Capture.

  1. When the map opens, navigate to the area you want to capture on the map.
  2. Click Confirm.

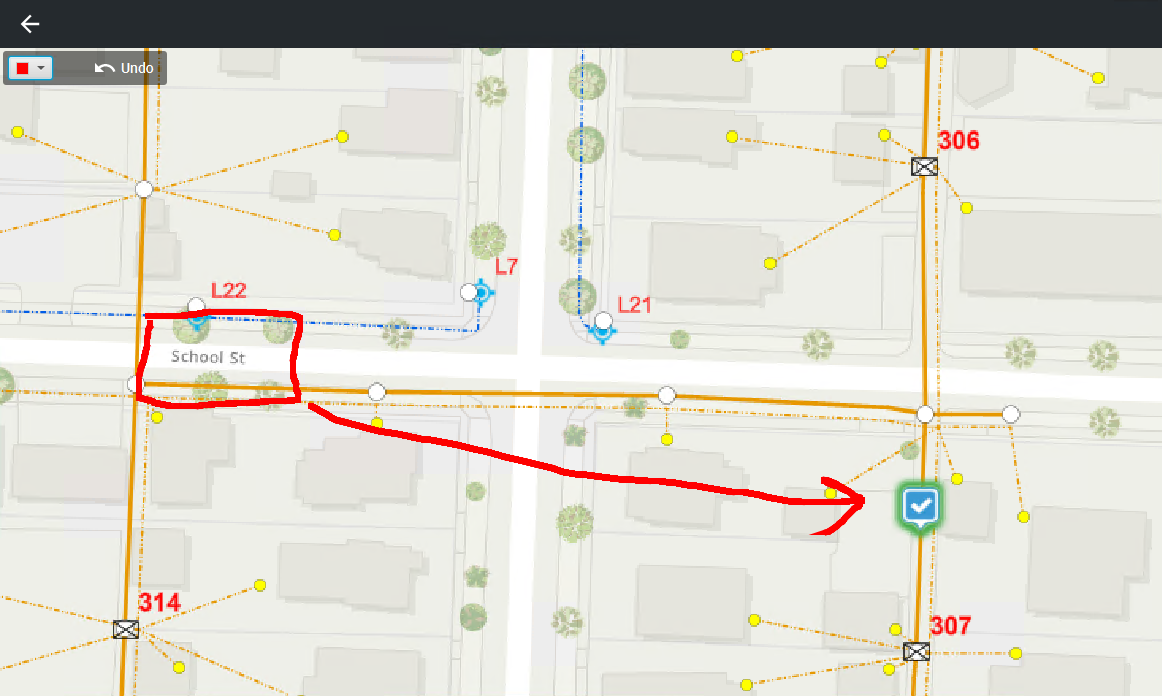

The mark up (or redline) screen opens and allows you to mark up the image.

  1. Mark up the image as needed. You can use the Undo button to remove a previous markup and use the color palette to change the color of the markups.
  2. Once you are done marking up the image, click Save.

The image and markups are saved to the Attachments section of the inspection.

  1. Click Save to save the inspection.

If the attachment you want to mark up was added in Cityworks, you may need to perform a sync or download the image. To download the image, click the download icon to the left of the image you want.

  1. Click Edit in the top-right corner.

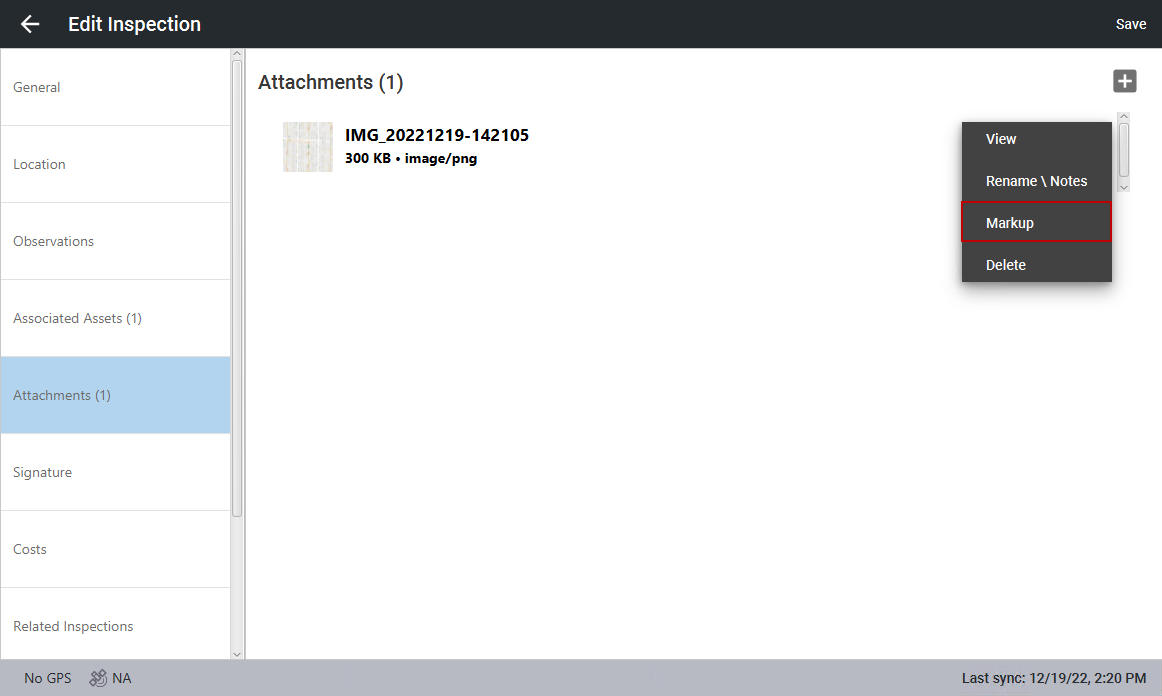

  1. To the far right of the image you want to mark up, click the vertical three dots and click Markup.

  1. Mark up the image as needed. You can use the Undo button to remove a previous markup and use the color palette to change the color of the markups.
  2. Once you are done marking up the image, click Save.

The image and markups are saved to the Attachments section of the inspection.
