Add Relationships to Assets

The Relationships section of the Asset Field Configuration panel displays any relevant geodatabase relationships in the Cityworks database for the currently selected asset type. These relationships allow the domain administrator to identify and include the GIS relationships that are applicable to Cityworks users. When the asset is attached to a work order, the related objects are also listed, allowing a work order to be created on the asset and/or any of its related objects.

1. Expand an asset group from the Asset Configuration panel and select the desired Asset Type to add Relationships to.

The Asset Field Configuration panel displays on the right.

2. Scroll down to the bottom of the Asset Field Configuration section and click Add record.

3. Select the Related Type and click Add.

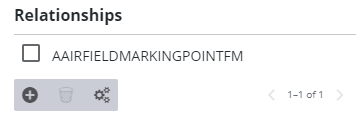

The relationships display in the Relationships section.
