Add a Tiled Map

Add a Tiled Map when using a cached map service (.../MapServer) where the data is pulled from saved images rather than being dynamically rendered. A cached map service has Single Fused Map Cache set to true in the REST URL defined for the service resource. This is an Esri published option.

  1. Click the Service Resources tab.

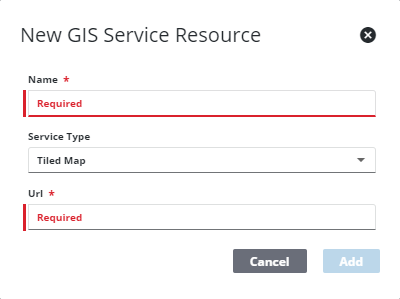

  2. Click Add record on the Service Resources panel.

  1. Enter a Name for the service.
  2. Select Tiled Map from the Service Type drop-down list.
  3. Enter the URL of the service.
  4. Click Add.

TIP: You can filter the list of records displayed. See Filter Records for more information.

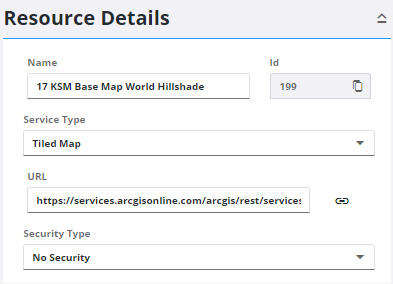

  1. Select the new resource from the Service Resources panel to finish entering the Resource Details.

The Id, a unique number assigned to the service resource, appears to the right of the resource Name.

  1. Select the Security Type, either No Security, OAuth2 App, OAuth2 User, or Token.

See Configure Service Resource Security for more information on security types.

  1. Click the link icon next to the URL field to quickly check the service connection.

Once a Tiled Map is added as a resource, add it to a Service Definition. See Add Services to a Service Definition for more information.

NOTE: Admin automatically saves the changes you make. A notification pops up at the bottom to verify changes have been saved.
