Use Snapping Controls

You can use the snapping controls to snap new or existing features to points on the map.

TIP: Make sure that the layer you're editing is visible in the Legend so you can view the assets on the map.

  1. Tap Editor on the map toolbar.
  2. Tap Start Editing.

From here you can edit existing features or add new features on the map. See View and Edit Attributes or Add a New Asset to the Map for more information.

  1. Tap Snapping.

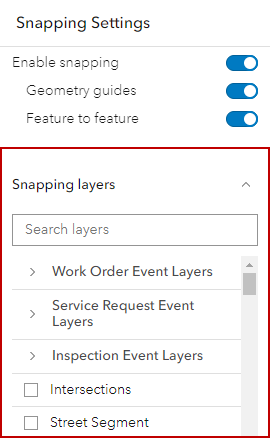

  1. Select to Enable snapping and then what you want to snap to, such as Geometry guides or Feature to feature.
  • Geometry guides: This allows a newly added feature or when editing an existing one to snap to geometry guidelines.
  • Feature to feature: This allows a newly added feature to snap to another feature.

  1. Select a layer you want the snapping controls to be applied to under Snapping layers.

TIP: Use the Search layers field to filter the list of layers.

  1. Tap Snapping to close the panel.
