Highlight Selected Assets on the Map

Assets highlighted on the map can be associated to a work order.

1. Open a work order.

TIP: You can filter the list of records displayed. See Filter Records for more information.

2. Select an asset in the Assets panel.

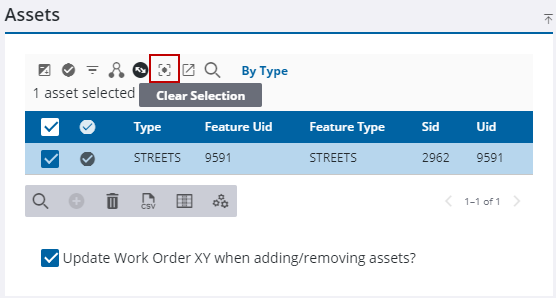

• Tap Center Map on the Assets panel to center the map on all the assets in the list or select an asset in the list and tap Center Map to center the map on the selected asset.

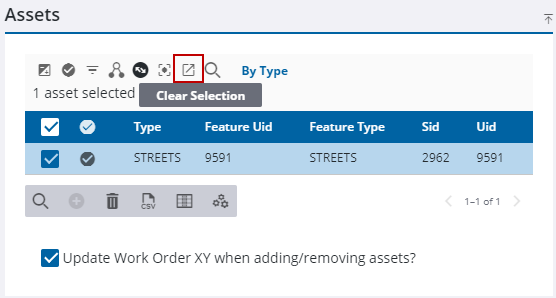

• Tap Select on Map to select the asset on the map. If no assets are selected in the Assets panel then all the assets in the list are selected.

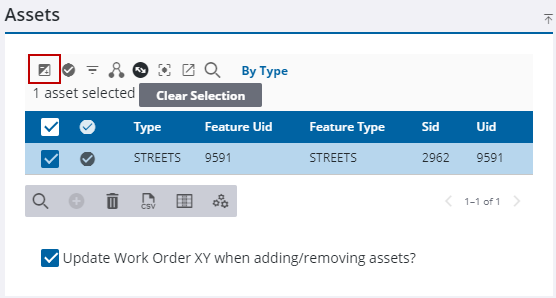

• Tap Invert Selection to switch between selected assets.

EXAMPLE If you select two of four assets and tap Invert Selection, the two assets you selected are cleared and the other two assets are selected.

See Assets Panel Fields for an explanation of the Assets panel fields.
